Firewall - Reports

  • Click the Firewall Reports tab in the Reports screen.

  • The Firewall tab enables the user to view reports about the Firewall rules set for the selected organization.

  • Users can view information such as:

    • The Top Denied rule

    • The Top Allowed rule

    • Percentage of allowed and denied rules

    • The most utilized rules

    • List of all rules set for the organization

  • In the Organization field, select the Organization or sub-organization from the dropdown menu. The logged in admin Organization is populated by default here. This is the organization corresponding to the email ID used to login.

  • The dropdown list consists of all the sub-organizations under logged in admin organization.

  • Select the Sites from the dropdown menu.

  • Select the Period from the dropdown menu.

  • By default, the period selected is 7 Days. The start and end of the selected period are shown next to the Period dropdown.

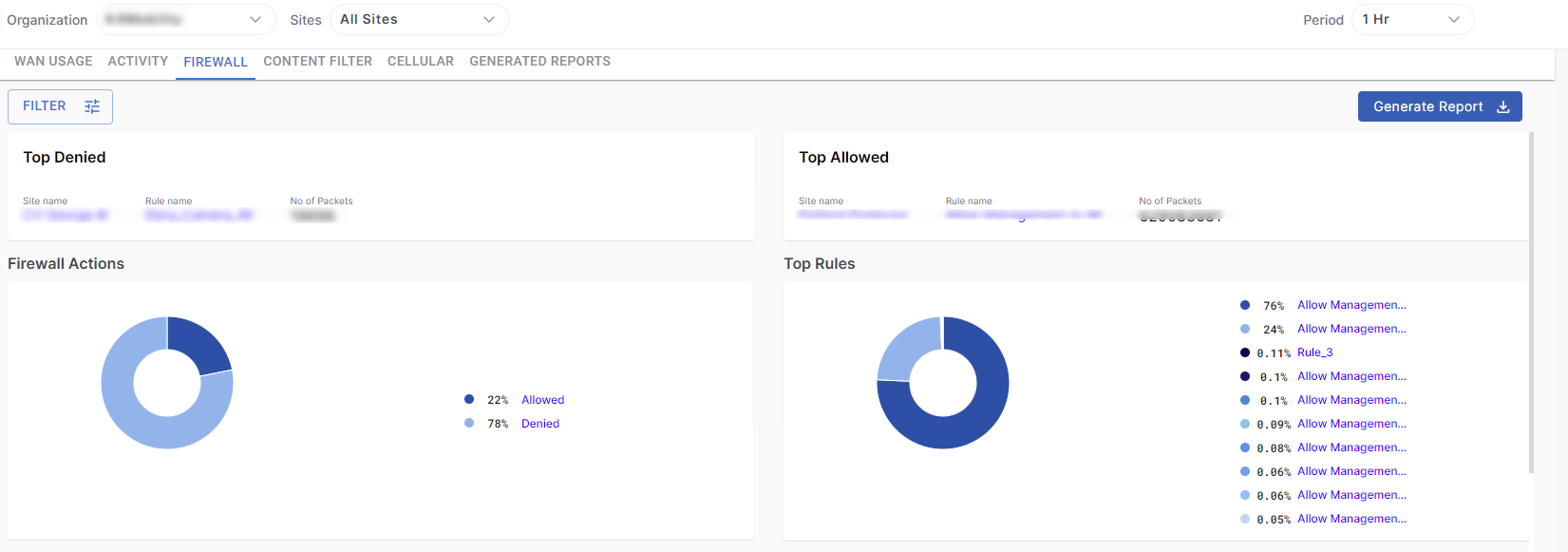

  • The Firewall tab shows the data as shown in the below figure.

Firewall Reports
  • Click the Generate Report button to download the Firewall reports.

Headers

The headers show the following information:

  • Top Denied - The Firewall rule that was used to deny the maximum number of packets. The Site name and number of packets is also shown.

  • Top Allowed - The Firewall rule that was used to allow the maximum number of packets. The Site name and number of packets is also shown.

Headers

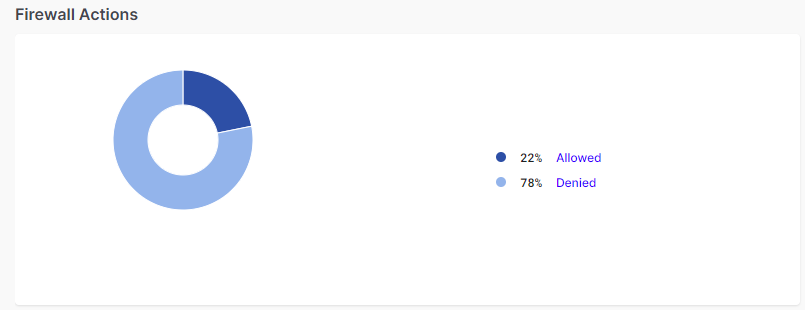

Firewall Actions

The Firewall Actions pie chart groups the firewall rules set by the users into Allowed and Denied categories and shows the percentage of each category. Hovering on any item on the pie chart highlights the category and shows number of rules in that category.

Firewall Actions

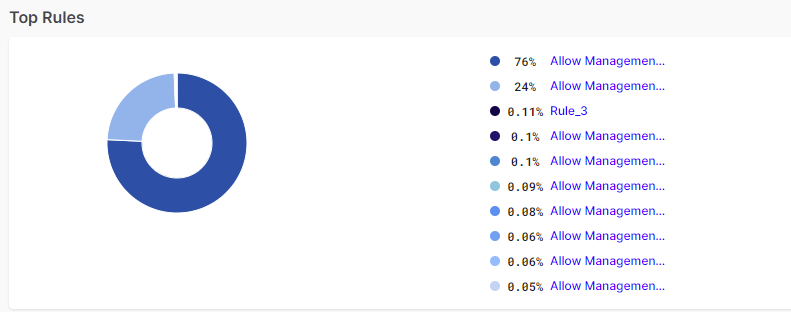

Top Rules

The Top Rules pie chart shows the most used Firewall Rules and shows their percentage. Hovering on any item on the pie chart highlights the category and shows number of packets in that category.

Top Rules

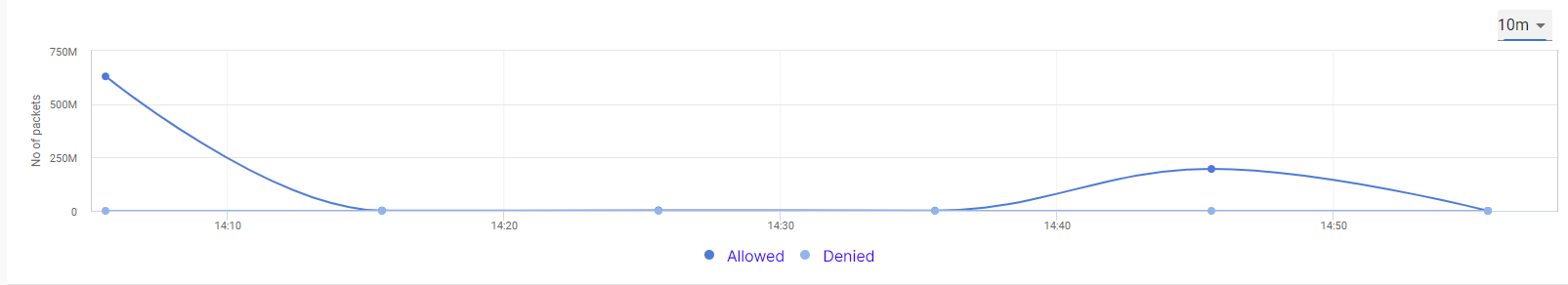

The line chart shows the amount of allowed and denied packets at different time instances. The horizontal axis contains the time instances, and the vertical axis contains the amount of packets. The graph between these two axes gives the user a clear understanding of how the firewall rules have been utilized over the selected time period.

Select the dropdown menu at the top right corner of the chart to change the time interval on the chart.

Line Chart
  • All the blue highlighted text in the Firewall screen is clickable. It can be the name of a site, name of a rule, or rule category. Clicking it filters the entire screen and displays the firewall rules information corresponding only to that site, rule, or rule category.

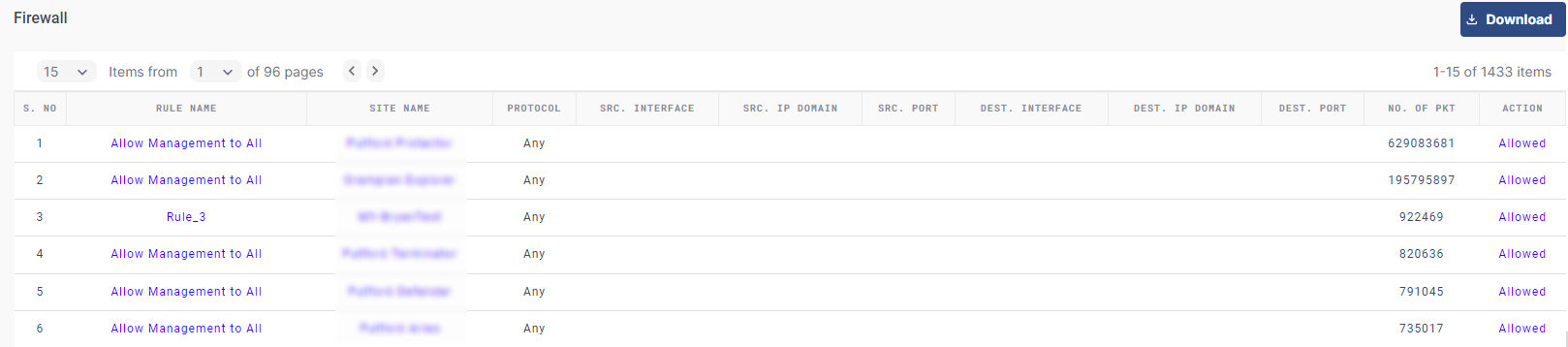

Firewall Table

The Firewall section shows a table that lists all the rules set under the selected organization. The Table shows the following information:

  • S. No - Serial number of the row.

  • Rule Name - Name of the rule.

  • Site Name – Name of the Site.

  • Protocol

  • Source Interface

  • Source IP Domain

  • Source Port

  • Destination Interface

  • Destination IP Domain

  • Destination Port

  • No of Packets– Total number of packets used for the rule.

  • Action – Type of rule (Allowed/Denied)

Click the Download button to download the Firewall rules data locally in CSV format.

Firewall Table

Filter

Click the Filter button to filter the Firewall Reports tab.

  • Rule name – search for and select one or more firewall rules.

  • Allowed / Denied – select the rule actions to include. Both are selected by default.

  • Click Apply Filter to filter the tab, or Clear Filter to remove the filter.

Filters

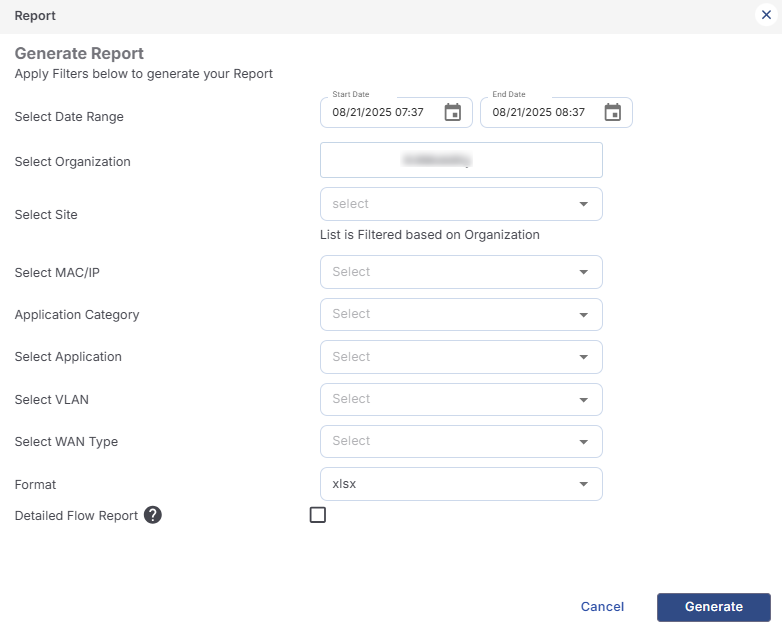

Generate Report

  1. Click the Generate Report button to open the Generate Report dialog.

  2. Select Date Range – select the Start Date and End Date (with time) using the date pickers. The currently selected period is filled in by default.

  3. Select Organization – the organization selected on the Reports screen.

  4. Select Site – select the sites (default All Sites). The list is filtered based on the organization.

  5. Select RuleName – optionally select specific firewall rules.

  6. Actions – select Allowed and/or Denied. Both are selected by default.

  7. Format – select xlsx (default) or csv.

  8. Detailed Flow Report – select this checkbox to also generate the detailed flow report.

  9. Click Generate to start generating the report, or Cancel to close the dialog.

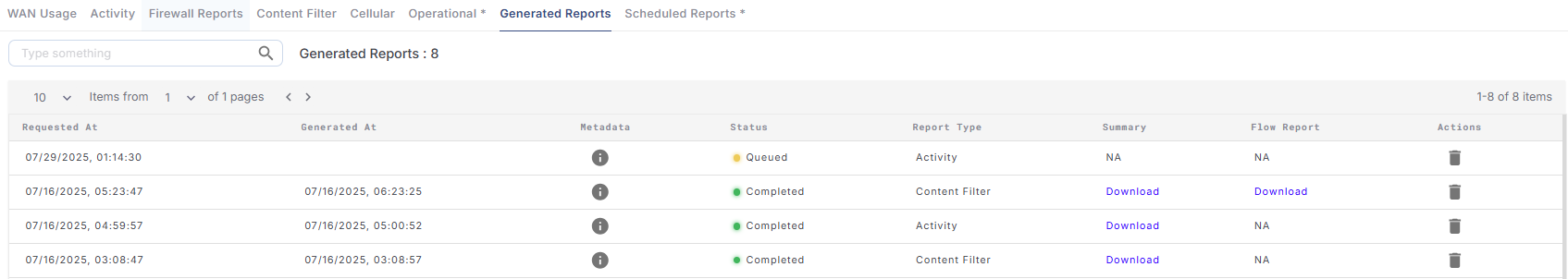

  10. Open the Generated Reports tab to view the status of the report and download it once it is completed. See the Generated Reports page for details.

Generate Report
