How To: Configure Pepwave modem with CommBox EdgeOS

The CommBox Edge platform is modular and extendable, with support for external USB modems that can be used to add cellular connectivity as an additional WAN source. This flexibility allows sites to be provisioned with or without cellular connectivity to control for specific needs or costs at the time of install, but lets network operators upgrade or downgrade resources at individual sites at their discretion. This user guide details how to add a Pepwave modem to an CommBox EdgeOS device.

Software Setup (CommBox EdgeOS 8.x)

Once the Pepwave modem is connected and the CommBox EdgeOS device is powered up, the modem is detected and added automatically as a Cellular WAN. The steps below show how to check or change its settings.

  1. Log in to the CommBox EdgeOS portal.

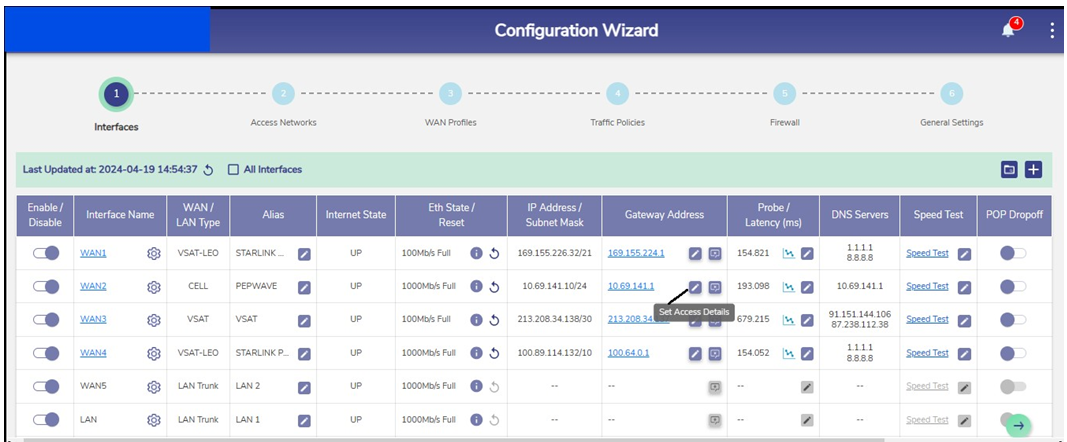

  2. Select Interfaces > Physical Interfaces from the left menu. Tick All Interfaces to show disabled interfaces as well.

Interfaces - Physical Interfaces
  1. Find the Pepwave interface. To change its settings, first disable it with its Enable / Disable toggle (settings cannot be edited while the interface is enabled).

  2. Click the gear icon next to the interface. The Interface Settings dialog opens (tabs: Type, NAT / Forwarding, Probing, Speed Test).

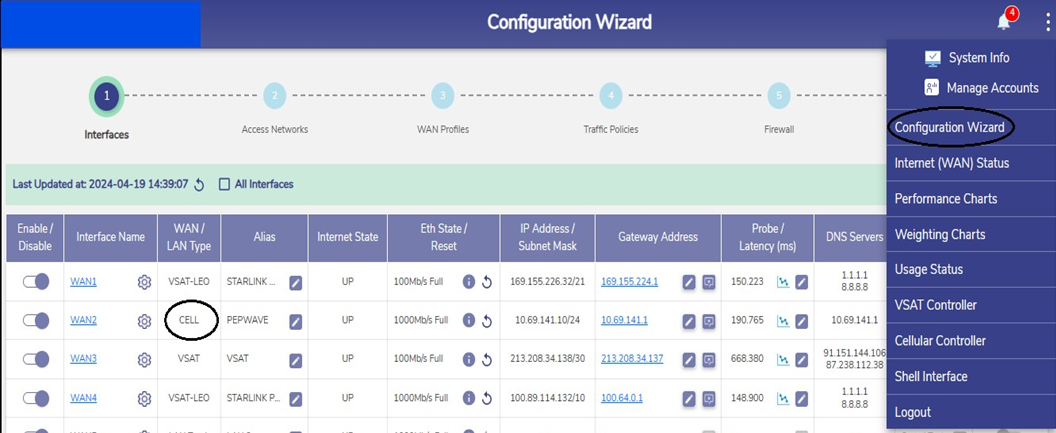

  3. On the Type tab, set Interface Type to WAN and WAN Type to Cellular, then click Save.

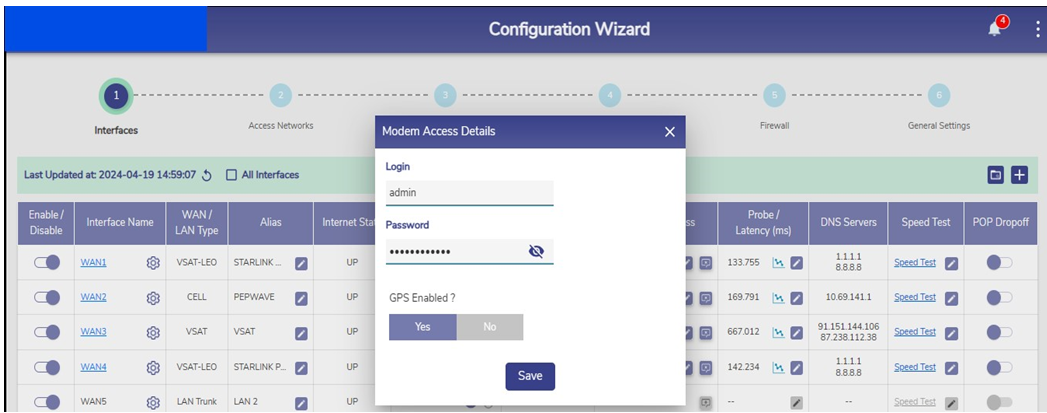

  4. Enter the Pepwave login (username and password) as the modem access details, so CommBox EdgeOS can read data from the modem.

  5. Enable the interface again with the toggle.

  6. Clicking the Gateway Address link opens the Pepwave web page. The icon next to it (Add to Konnect) adds the modem to Konnect for remote access. See ‘How To: Remotely access Starlink / Peplink / Ascent Modem through Konnect Application’.

Pepwave modem settings

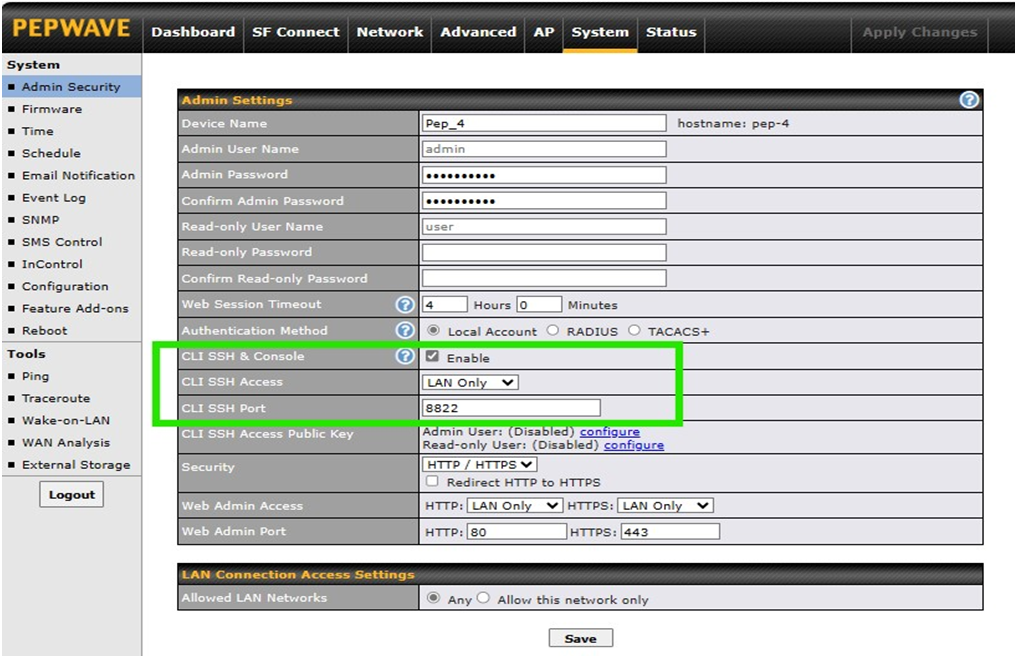

In the Pepwave web page, go to System > Admin Security and set:

  • CLI SSH & Console - Enable

  • CLI SSH Access - LAN Only

  • CLI SSH Port - 8822

Pepwave Modem Configuration

Cellular Controller

Once the Pepwave modem is configured, you can view its analytics on the controller page.

  1. Select Controllers from the left menu. There is one tab per controller.

  2. Select the Pepwave modem’s tab. The page shows Cellular Indicators (IMEI, Status, Operator / PLMN, Strength, Tech / Band / Bandwidth, Details, Cell ID and Software Version), SIM Details and Performance charts. See ‘How To: Configure 5G modem with CommBox EdgeOS’ for a description of each field and of the Cellular Actions (Lock / Unlock / Reset).

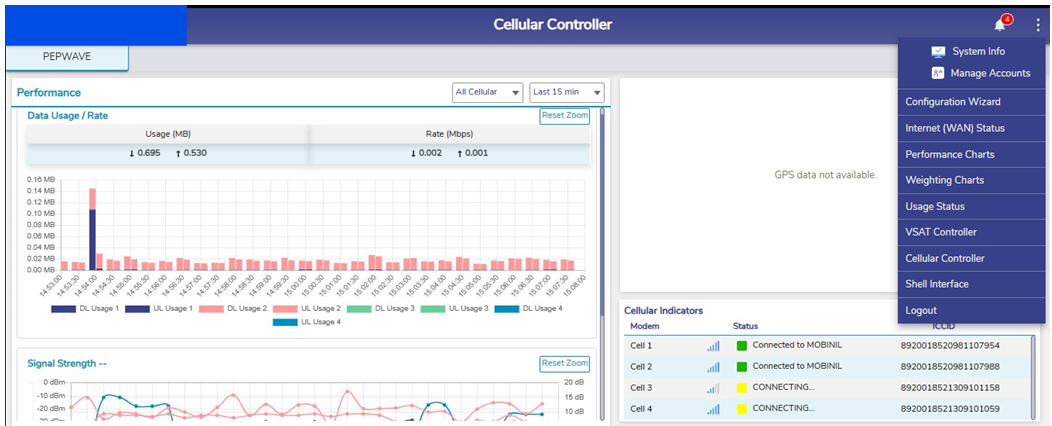

Controllers page (example showing an external 5G modem)
