ES110 - Hardware Description

Enterprise Internet and LAN Management System

The ES110 runs CommBox EdgeOS as part of the Comm Box Edge platform. It can be managed directly, or seamlessly through the CommBox Edge Cloud Portal web portal and the Edge Mobile App.

The ES110 supports an array of services efficiently and effectively, reducing complexity and simplifying installations. The Comm Box Edge platforms consists of software, applications, cloud systems, and advanced analytics choose the best network for the location and conditions while providing users the tools to customize their system for the best user experience.

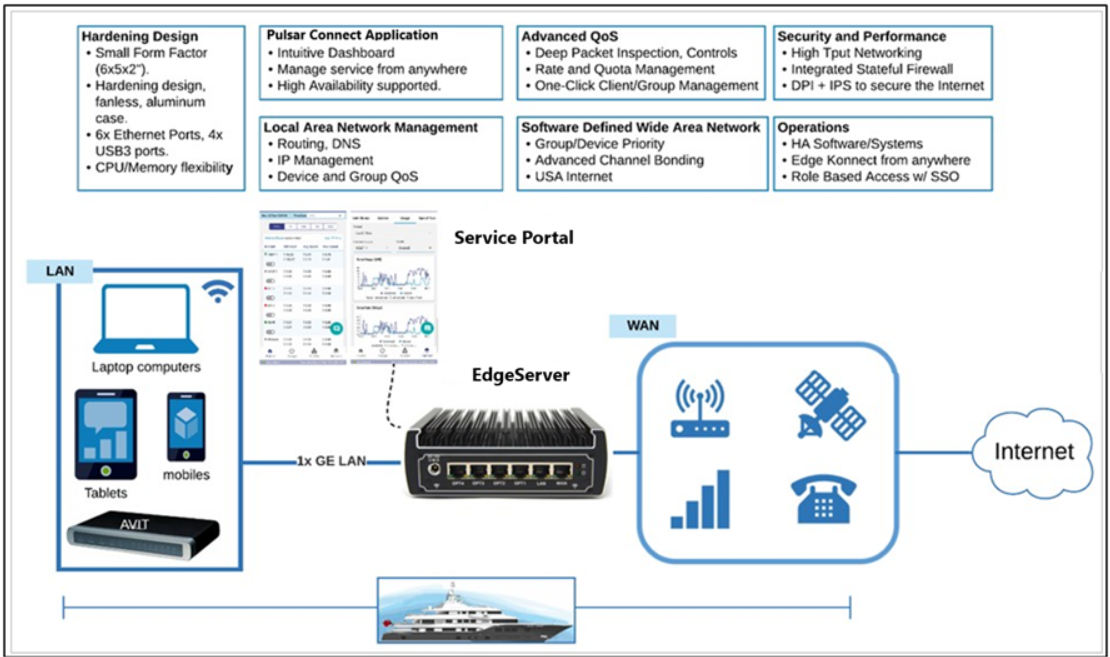

**Figure 1.1 Configuration of Equipment**

ES110 Physical Design

The ES110 is a Small Form Factor (SFF) industrial-grade server that hosts an Intel multi-core CPU running the CommBox EdgeOS software. The following figures show the primary interfaces and connections of the ES110 system.

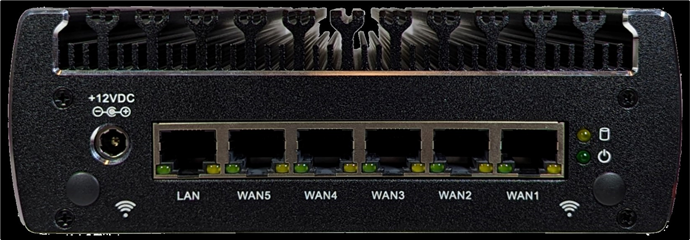

A DC input (+12VDC), power/disk LED, and flexible LAN/WAN RJ45 ports are available on the back panel.

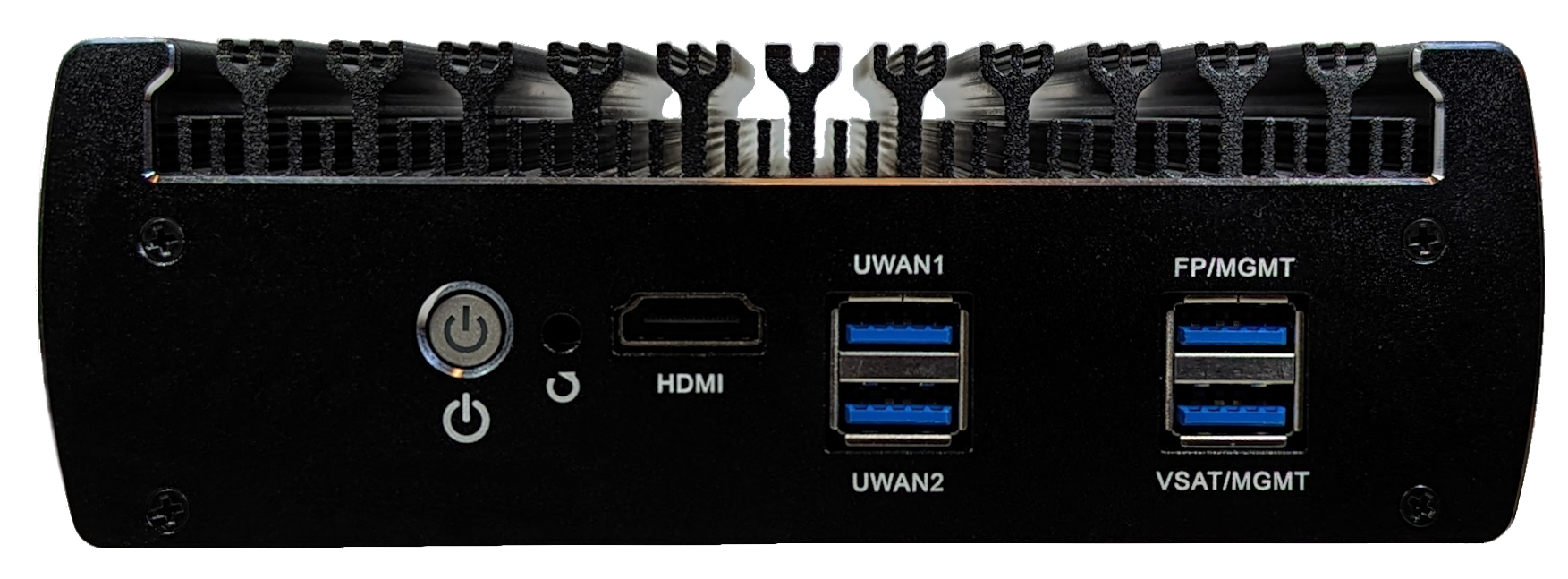

The power button, HDMI, 4x USB 3.0 connections are on the front panel. The USB 3.0 ports provide system management as well as additional WAN/LAN ports by using an adapter or appropriate USB WAN device, like a 5G modem.

For details of the external interfaces and primary limits or technical specifications, refer the below table.

External Interfaces	Primary Limit or Specification
WAN Management	Supports up to 12x WAN Sources.
Ethernet	6x GE ports, additional 4x GE ports using USB expansion.
Network Configurability	Up to 500 Clients, 30 VLAN Networks; Stateful Firewall.
Compute Power	Intel i3 Dual Core 7020 at 2.3 GHz; 8 GB RAM, 128 GB Storage.
Expansion	4x USB 3.0 ports - GE or 10GE ethernet; 5G modem adapter supported.
Cooling	Passive, Fanless – Silent.
Mounting	Standalone / VESA / Rack mount kit available.
Power	+12VDC (50W Max); 100-240 VAC, 50-60 Hz (AC/DC Power Supply Included)
Physical	6.1” x 5” x 2.1” / 15.5 x 12.7 x 5.3 cm - 2.25 lbs / 1 kg
Environmental	Operating temperature: -10 to +50 C; Humidity up to 95%, non-condensing.
Warranty	1 Year limited.

ES110 Technical Specifications
